B1DL 1200 Single Spindle Drill Line
-
Single Spindle Drill Line
B1DL 1200
Ideal for small and medium-sized fabricators with a need to conserve space.
Maximized efficiency and faster processing with ease- Processes Beams, Angles, Flats, Tubing or other Shapes
- 20'-60' Standard Processing Lengths
- High versatility
- Space efficient
- Robust clamping
- High productivity with sub-axis
- 20HP Spindle motor power
- 6-Station tool changer

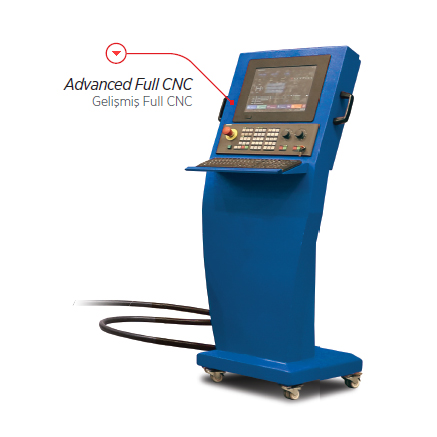

- Advanced full CNC
- Optional Beam Turning Device
- Controller: Siemens
- Working length: 6-10-14-18-22-26 meter
- Profile height: 50-1200 mm
- Profile width: 50-1200 mm
- Support table height: 1000 mm
- Length: Working length +3,6 meter
- Height: 3.150 mm
- Width: 3.000 mm
- Weight: Varies with model
- Maximum tool length: 320 mm
- Drilling capacity: 5-40 mm
- RPM: 3.000 rpm
- Spindle motor power: 15 kW
- Total power: 45 kW
- ATC station capacity: 6 nos.
