Column and Boom welding systems are a common site in many tank and structural steel fabrication shops, but most people simply don’t know the advantages of these simple, yet versatile systems or even what they are used for. More importantly what problems these systems resolve, and the advantages using a Boom & Column Welding System. Often coupled with Tank Turning Rolls or a Fit-Up Systems Column and Boom Welding systems are an integral part of tank and cylinder manufacturing. BendmakUSA offers a complete line of Welding Systems, Including Column and Boom, and our expertise in welding goes far beyond your local wedding gas supplier.

What Is a Column & Boom Welding System?

A “Column & Boom” Welding system is a simple device to allow for greater reach of welding equipment over large workpieces.  It consists of two main pieces, the ‘Column’ which rises vertically from a fixed or moveable base allowing for height adjustment in order to reach over the components being welded. The ‘Boom’ refers to the part that raises and lowers on the column and reaches out over the workpiece itself.

Typically a welding head is located on the end of the ‘Boom’ which supports the majority of the welding equipment. Here in our HCB-MCB Column Boom Welding Systems web page you can see more details on these systems.

6 Benefits of Using Column-Boom Welding Systems

  • Higher Productivity: The first advantage you’ll realize with a new Column And Boom Welding systems from Bendmak is the increased productivity as keeping the torch in position for welding becomes much easier thus accounting for Higher Production Rates.
  • Higher Weld Quality: Weld quality can be difficult to achieve and maintain when manually welding large workpieces in awkward weld positions. Utilizing a flexible Column & Boom Welding System from Bendmak can make even the most difficult welds easily achieved.
  • Flexibility and Versatility: Whether welding up, down or other difficult to reach positions, the flexibility of the Bendmak Column and Boom System allows you to position the welding torch perfectly each and every time.
  • Welder Safety: Keeping your staff safe and out of harm's way is another great feature of the Column and Boom Welding systems from Bendmak. With the reach and flexibility of the system the welder can easily operate the systems from the comfort and safety of the operator's control station  while monitoring and adjusting the weld as needed, remotely.
  • Reduce Welder Fatigue: When your welder can perform arduous tasks in comfort your welding productivity goes straight up as welders are not forced into difficult body contorting positions for hours on end greatly reducing fatigue.
  • Reduced Floor Space: Eliminating Scaffolding, Forklifts & Manlifts from the shop floor not only frees these up for other uses, but the Bendmak Column & Boom Welding Systems provide a much smaller footprint saving valuable workspace.

5 Considerations for Finding the Right Column & Boom Welding System

Considering what system to purchase starts with considering your needs. Important factors for your application will lead you to select the right system. Below are the trop 5 factors you should consider when choosing your stem.

  • Height: Make sure the system you choose has the height capacity to go well over your tallest workpiece allowing the welding torch to drop down to the workzone comfortably
  • Reach: Ensuring that your Boom has the reach needed is a critical factor for weld quality and productivity as SAW (Submerged Arc Welding) welding operations will be hampered if you cannot get the torch positioned directly over the top of the tank seam being welded.
  • Load Capacity: Carrying at that welder weight while extended is an important consideration of the system.  Make sure your welder, feeder and any other accessories can easily be supported when extended out at max height AND max reach.
  • Flexibility: Having a system that easel;y adapts to changing welding situations is an important factor in saving you time and money. The more flexible the system is to varying welding scenarios the better suited it will be for your varying needs.
  • Operator Safety/Comfort: Perhaps one of the most important factors in maintaining productivity is making sure your welder/operator is comfortable and safe in the operation of the system.

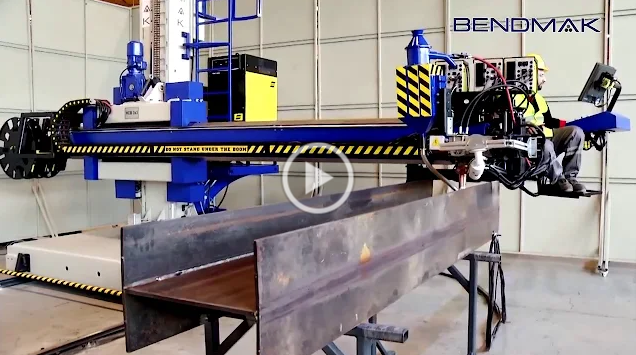

BENDMAK_COLUMN-BOOM-mp4-Google-Drive

How to Find the Best Welding Machines for Sale

Finding the best Column and Boom or other welding system may seem like a simple task but their are many different systems to choose from that have a variety of features and benefits that may, or may not, benefit you.

  • Find a System that can be used with a variety of welding systems and is not brand specific (i.e. Miller, Lincoln, Esab, etc.). You will find the greater the flexibility offered the greater the advantage to your operation in the years ahead as new welding systems are introduced and become applicable for your operation.
  • Durability is also a very important factor as these systems are exposed to harsh environments with many being exposed to the elements. A quality system, like the ones offered from BendmakUSA can add years of life and value to your operation.
  • Support is another key issue that should be considered as when your welding system is dwn , your operation is down. Great factory, engineering and service support provided by BendmakUSA is a great resource to have on your side.

At BendmakUSA we provide quality welding systems and can tailor each machine or system to meet your needs. Working with all the top welding equipment suppliers, BendmakUSA doesn't force you into a specific brand or type of welder, allowing you to choose the right system for your needs and budget. We look forward to the opportunity to provide you with more detailed information on Bendmak’s Boom & Column Welding Systems. Please contact us directly for more information at 833-BENDMAK (833-236-3625) or visit us on the web at WWW.BENDMAKUSA.COM

Download our Welding Solutions Catalogue here: Bendmak - Welding Solutions.pdf
